MASTERTUNE BLUETOOTH CANBUS

The TTS Bluetooth MasterTune System is designed specifically to tune Delphi-equipped Harley-Davidson® motorcycles `12-Up, and includes four powerful Windows®-based programs

1. TTS BLUETOOTH MASTERTUNE SYSTEM FOR V-TWIN
2. MasterTune2-HD: An ECM calibration development tool that allows you to:
3. Choose from a wide selection of base maps
4. The TTS Bluetooth MasterTune System is designed specifically to tune Delphi-equipped Harley-Davidson® motorcycles and includes four powerful Windows®-based programs.
5. Providing a 2-way communication between the bike’s ECM and a Windows based laptop/PC.
6. Save and Restore current calibration (factory or other)
7. Modify many critical ECM tables and constants
8. The interface also provides stand-alone data logging for diagnostic and calibration support.
9. The MasterTune software package can be downloaded for free at MasterTune.net/GettingStarted.
10. Graph tables in 2D or 3D
11. Quickly compare changes in tables
12. MasterTune: An ECM calibration development tool designed specifically for use on all Delphi-equipped Harley Davidson motorcycles from `12-22:
13. MasterTune licensing is associated with the programming interface. Can be licensed to program either one or two vehicles
14. Correct speedometer calibration
15. Change primary ratio
16. Communications interface will “lock” to the vehicle the first time it is used for programming
17. Choose from a wide selection of base maps
18. VTune3-HD: Assists you with:
19. Calibrating VE tables
20. Save and Restore current calibration (factory or other)
21. Modify many critical ECM tables and constants
22. Calibrating spark tables
23. Calibrating EGR correction tables
24. Preset limits to prevent adjusting values beyond reasonable settings.
25. Stores original and the last table saved edits so tuner can return to previous configuration
26. Verifying injector sizing
27. DataMaster2-HD: A diagnostic and calibration support tool that allows you to:
28. Graph tables in 2D or 3D
29. Quickly compare changes in tables
30. Check and Clear diagnostic codes
31. Utilize VTune Histogram for tuning development
32. Print table graphs and table values
33. Supports tuning using wideband O2 sensors
34. View real time engine parameters
35. Playback recorded data
36. Correct speedometer calibration
37. Change primary ratio
38. Analyze Camshaft settings
39. Analyze IAC warmup settings
40. Calibration adjustments:
41. Spark advance, front and rear
42. Simulate dyno and ¼ mile results
43. Flight Recorder: Configures a Communications Interface to allow you to:
44. Knock control
45. Volumetric efficiency, front and rear
46. Record data without a computer
47. Record as much as 8 hours of data
48. Rev limit
49. AE/DE fueling
50. Store up to 64 recordings
51. Automatically start and stop recordings
52. EITMS settings
53. Idle speed
54. All TTS MasterTune software is compatible with 32- and 64- bit versions of Windows 7 and newer
55. Bluetooth connection. No cables required to connect to computer
56. Start/Warmup fueling
57. Primary gearing changes
58. Made in USA
59. Fuel injector size
60. Engine Displacement
61. AFR/Lambda target
62. DataMaster: Display and record all your bike’s data as well as various calculated channels. This data can be viewed in real time, recorded, and played back. It can also graph in 2D or 3D lines:
63. Records vehicle engine data while riding or stationary
64. Retrieve, Check and Clear diagnostic codes.
65. Stores historic and current DTC’s
66. Playback of recorded data allowing viewing of key engine operating parameters
67. Clear DTC’s once repair is completed
68. Utilize VTune Histogram for tuning development
69. View real time engine parameters
70. Playback recorded data
71. Analyze Camshaft settings
72. Analyze IAC warmup settings
73. Simulate dyno and ¼ mile results
74. VTune: Works with all Delphi-equipped Harley Davidson motorcycles that are equipped with O2 sensors. VTune works by combining your current calibration with recorded data from DataMaster or Flight Recorder and creating a new optimized calibration:
75. One click tuning
76. Calibrating VE tables
77. Calibrating spark tables
78. Calibrating EGR correction tables
79. Verifying injector sizing
80. Flight Recorder: Allows for on-vehicle data recording with now attached PC.
81. The Flight Recorder is set up using an easy-to-follow wizard while the communications interface is attached to a computer.
82. After setup is complete you can collect up to 10 hours of data. After uploading data into DataMaster for playback and analysis and used with VTune for automatic tuning:
83. On vehicle data recording without attached computer
84. Record as much as 10 hours of data
85. Select from several DataMaster-compatible data streams (including VTune data)
86. Configurable RPM at which to start recording
87. Automatically start and stop recordings
88. All TTS MasterTune software is compatible with 32- and 64- bit versions of Windows 7 and newer
89. Bluetooth connection. No cables required to connect to computer
90. Made in USA

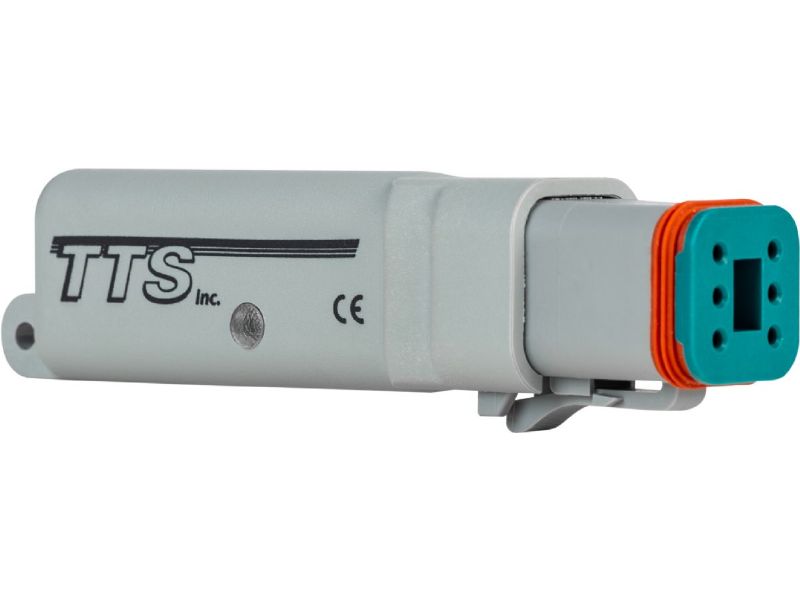

91. MasterTune BlueTooth Communications Interface
92. Interface marries to the ECM during the first ECM flash. Further calibration development can only be performed on that ECM
93. Vehicle diagnostics and data logging only, can be used on any compatible vehicle, even if already married to an ECM
94. MasterTune interface communicated to the PC via a wireless Bluetooth connection.
95. Includes support loop to attach the interface to the bike via a wire tie

Dimensions
W 2.7in * H 1.2in * L 4.7in
Weight: 0.17lbs
