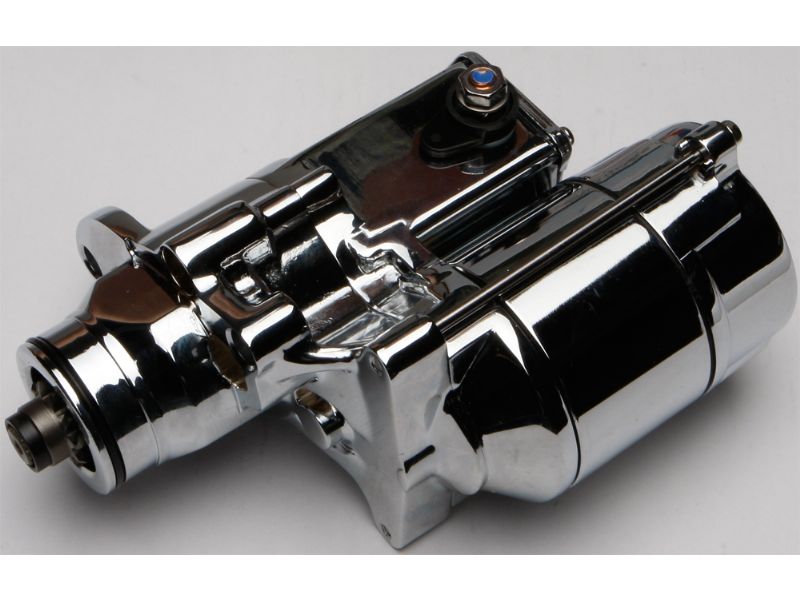

ALL BALLS starter motors are manufactured with all new components that have been fine-tuned for starting the H-D V-Twin engine
All starters are supplied with a 10/32 threaded output shaft, and a conversion bolt for the earlier 1/4-20 threaded output shafts to cover all Big Twins from 1989 thru 2005
Idler gears are manufactured from cold-heated steel
End frames are cold-chamber die cast and machined on precision fixtures
Armature hairpins are resistance-fused to the commutator
Our clutches utilize 20% oversize rollers
Hitachi Starter is 5.25" overall length.
Prestolite Starter is 6" overall length.
Limited Lifetime Warranty
Dimensions W 10.5in * H 7in * L 6.25in Weight: 9lbs
