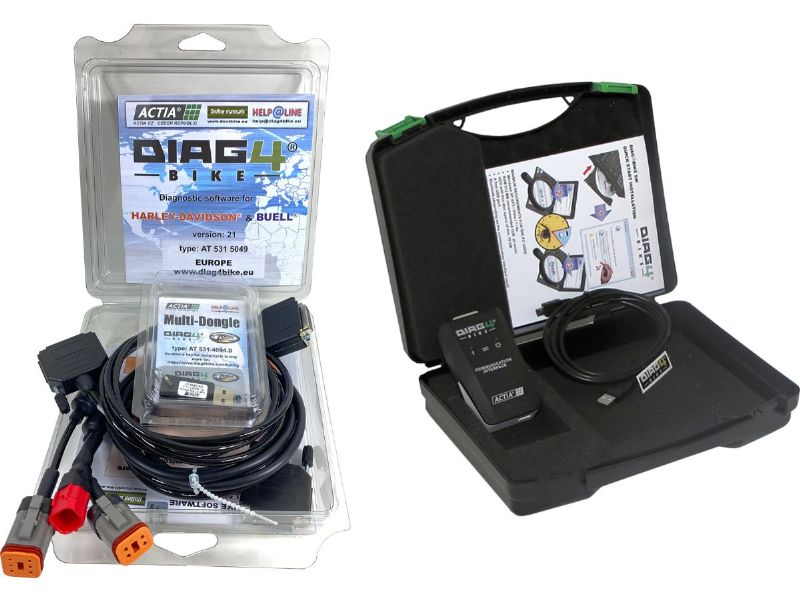

Professional diagnostic tool for Harley Davidson & Buell workshops and tuning centers. Diagnoses electronic fuel injection module (EFI) and others (Security modules, ABS, etc.) through the diagnostic connector. The system consists of a communication interface with Harley-Davidson adapter, USB cable for connection to your Laptop (PC) and software compatible with Windows XP, Vista, 7, 8 and 10. A wireless Bluetooth version of the interface is also available. An adapter for CAN-BUS models is included. The system performs the following functions and more. Software for Indian and Victory is also available.
- Ignition Module
- EFI (Electronic Fuel Injection Module) - All models
- TSSM (Turn Signal Security Module)..............Key FOB with button
- HFSM (Hands Free Security Module).............Key FOB without button
- BCM (Body Control Module).............Key FOB without button
- Gauges (Speedo, Tach and Instrument Module) - All models
- ABS Module (Delphi + CAN models) - All models
- Radio and Audio all models
- Thunder MAX EFI
- Read and Clear Diagnostic Trouble Codes......................All models
- Read Identification data (part numbers, VIN number)......All models
- Monitoring real-time data (throttle position, temperature, oxygen sensors, turn signals etc.)
- Test actuators (injectors, coils, main relay, fuel pump, idle, turn signals, tachometer, lamps etc.)
- Buell diagnostics are incorporated in Harley-Davidson diagnostics
- Unit of measure selection metric/standard
- Communication interface is CAN ready (models with 6-pin connector)
- Module replacement –TSM, TSSM, HFSM, BCM,
- ABS Service (Bleeding and configuration, Delphi + CAN models) - All models
- ACR (Automatic compression release during starting)
- Cruise Control, Exhaust actuator, EITMS......enable/disable
- Side Stand Switch Configuration - All Models
- Intake Solenoid Valve Configuration on CAN Models
- Radio customization-region code and speaker configuration, radio pairing
- J&M Audio Configuration
- ABS Telltale Configuration on CAN Models
- Idle speed adjustment 800 - 1200 rpm (models with Delphi Electronic Fuel Injection Module)
- TSSM Customization......PIN read/change, Auto arming disable/enable etc.
- HFSM Customization......Key FOB assignment/replacement, Auto arming disable/enable, PIN read/change, Side car and Service Mode (disable/enable)
- BCM Customization........Key FOB assignment/replacement, Auto arming disable/enable, PIN read/change, Lights configuration, keyless ignition
- Disarming (HFSM/BCM module)........PIN read/FOB assignment on armed bike (for BCM modules a CAN disarming cable is needed)
- Buell TPS adjustment
- Dataloging
- ABS Module (embedded/not embedded)
- Speedo module pairing
- Wheel size adjustment (Speedo calibration)
- Odometer unit setting
Dimensions W 8.5in * H 3.5in * L 10in
Weight: 3.4lbs
