Media enhancement by M-Pleating, increases Dust Holding Capacity (D.H.C) and reduces pressure drop
Full Synthetic media filters not only catch and remove even the smallest particulates, but also better withstand complex chemical reactions between fuel components, combustion products and contaminated oil that cause premature filter aging.
The high-quality-high-capacity M-Pleat (zigzag pleat pattern) Media Structure provides more filtration area, allowing for enhanced Dust Holding Capacity (DHC) and extension of life
The zigzag pleating pattern provides more filtration area allowing more dust holding capacity (DHC)
Additional filtration area gives the oil more room to flow, resulting in lower pressure drop
The resin-impregnated media ensures structural integrity during its operation under pressure and temperature spikes.
The M-Pleating core function is to provide consistent flow due to evenly spaced pleats, and the optimum number of pleats to provide more room to ‘breathe’ and decreases a drop in pressure.
The media is resin-impregnated to ensure structural integrity during its operation under pressure and temperature spikes Forming tapped thread for easy installation and spin-on
Pre-lubricated gasket
The louvered ‘baffle’ type screen holds the media in place creating a swirl effect, that forces the oil to contact more of the media when passing through the filter.
Unlike when the simple perforated screens are used and the oil takes the path of least resistance through the filter, resulting in less media contact and poor filtration.
The gasket is lubed from the factory to aid installation
The base plate is covered with shrink film to ensure that the lube stays there until the time of usage and dust protection
Offers forming tapped threads for clean installation
Pre-Lubricated gasket covered with shrink film to keep it contamination free until use.
Standard features plus the following:
Heat-resistant Anti-Drainback valve (ADBV)
Fluted for easy hand or tool grip
Unlike standard nitrile rubber, silicone rubber has a higher heat-resistance
The enhanced ADBV will prevent dry starts and provides durability throughout the extended life of the filter

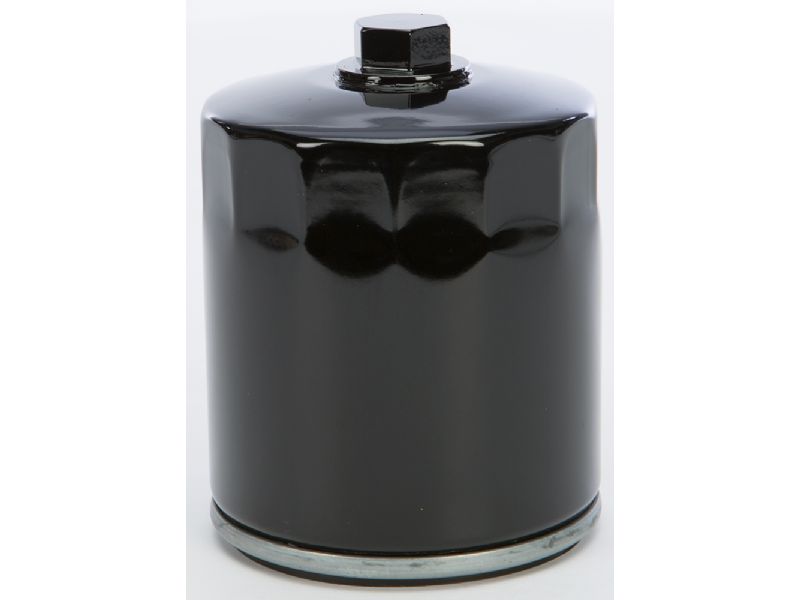

17mm Hex Nut
Easy for service and removal after prolonged usage
The nut is designed for safety wire attachment if needed
16 Weld spots for higher nut fatigue strength
+30% Gauge thickness for higher burst strength
Oval inlet hole for even lower flow resistance
Dimensions W 3.14in * H 4.33in * L 3.14in Weight: 0.7936lbs
