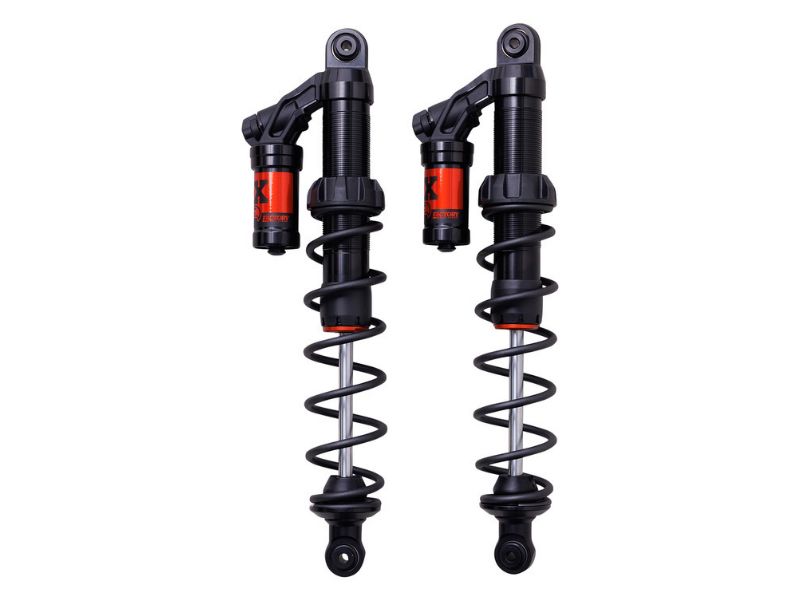

Completely redesigned and refined Factory Series Shocks are the lightest yet! Available in Coil and Float series with updated MY 26 styling. Rifle Bore have spiral grooves on the inside of the shock allowing oil to flow around the main piston reducing the damping force in the ride zone for a plush ride. The grooves end through the final 30% of the travel forcing the oil to flow through the main piston resulting in a significant increase in bottom-out resistance to cushion hard hit. QSE model rear track shocks include an electronic lock out mode with the simple click of a handlebar mounted button!

1. 60% lighter piston, 20% lighter shaft
2. Smaller overall size
3. Rifle-Bore Bodies - Position Sensitive Damping
4. Refined look on newly weight-optimized body caps
5. Aluminum and Injection Poly Mounting Hardware
6. Optimized Reservoir Length
7. Double Digressive Aluminum Piston
8. High-Pitch Spring Design
9. High Volume Bearing
10. Orange Reservoir Caps, Black Type Ill Anodized Bodies
11. Fully Rebuildable and Revalveable
12. QS3 - 3 Position Compression Adjustment
13. QSL Lockout on Rear Track
14. QSE on select models: handlebar mounted switch locks out rear track shock

Dimensions
W 13in * H 6in * L 31in
Weight: 6.638lbs
