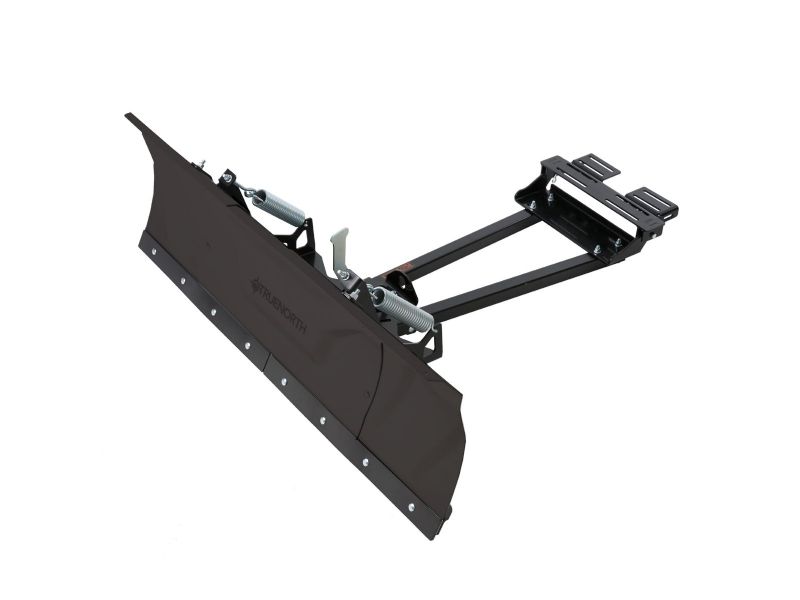

TrueNorth Switchblade™ Snow Plow System is a complete Plow-in-a-Box, minus a Winch. Robust square tube steel chassis with strategically placed reinforcements.
- Complete Plow-in-a-Box, minus Winch Stamped steel blade technology adjusts to either 48” or 60” width
- Robust square tube steel chassis with strategically placed reinforcements 5-position blade angle
- Easy to assemble and install under-body mount Requires winch (sold separately)
- Assembles in under 1 hour
- At maximum blade angle position, the snow cutting widths are 43.5” and 54.3” for the 48” and 60” blade widths respectively
- Included Mounting Hardware: (1) ATV Mount Weldment, (1) Mount LH Bracket, (1) Mount RH Bracket, (2) Square U-Bolt, Zinc Plated, M8-1.25 x 50 x 110
- (4) Round U-Bolt, Zinc Plated, M8-1.25 x 40 x 96, (16) Flange Locknut, Zinc Plated, M8-1.25, (4) Flat Washer, Zinc Plated, M8, (4) Spacer, Steel 1.0" Dia. x 0.5" Height, (2) Hex Flange Bolt, Zinc Plated, M8-1.25 x 65mm LG, (1) Plate, Steel Strap
Dimensions
W 17in * H 9.1in * L 32.5in
Weight: 101.6lbs
