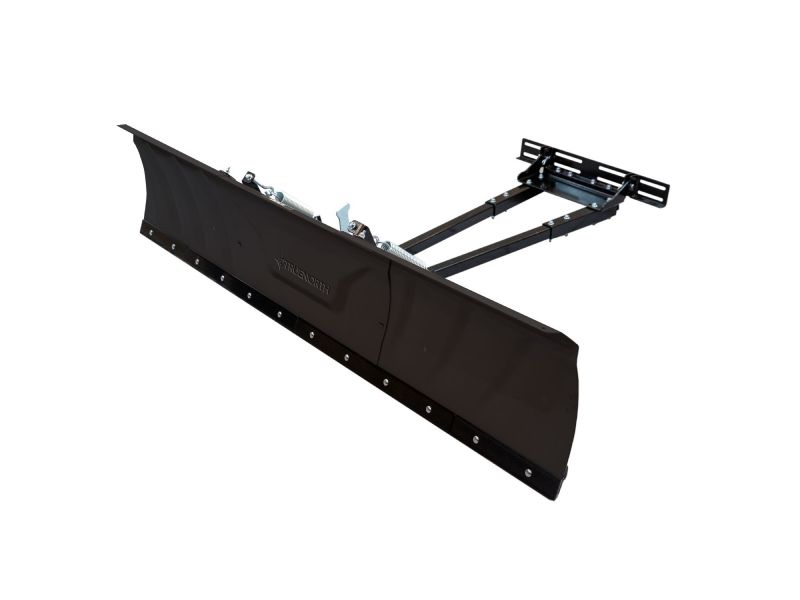

TrueNorth Switchblade™ Snow Plow System is a complete Plow-in-a-Box, minus a Winch. Robust square tube steel chassis with strategically placed reinforcements.
- Complete Plow-in-a-Box, minus Winch
- Stamped steel blade technology adjusts to either 60” or 72” width Robust square tube steel chassis with strategically placed reinforcements
- 5-position blade angle Easy to assemble and install under-body mount
- Requires winch (sold separately) Assembles in under 1 hour
- Box fits in the back of your vehicle for easy transport
- At maximum blade angle position, the snow cutting widths are 54.3” and 65.1” for the 60” and 72” blade widths respectively
- Included Mounting Hardware: (1) UTV Mount Weldment, (1) Mount LH Bracket, (1) Mount RH Bracket, (4) Square U-Bolt, Zinc Plated, M8-1.25 x 50 x 110
- (4) Round U-Bolt, Zinc Plated, M8-1.25 x 40 x 96, (4) Spacer Plate, (16) Flange Locknut, Zinc Plated, M8-1.25, (4) Hex Flange Bolt, Zinc Plated, M8-1.25 x 30mm LG, (4) Flat Washer, Zinc Plated, M8
Dimensions
W 17in * H 9.1in * L 32.5in
Weight: 117.6lbs
