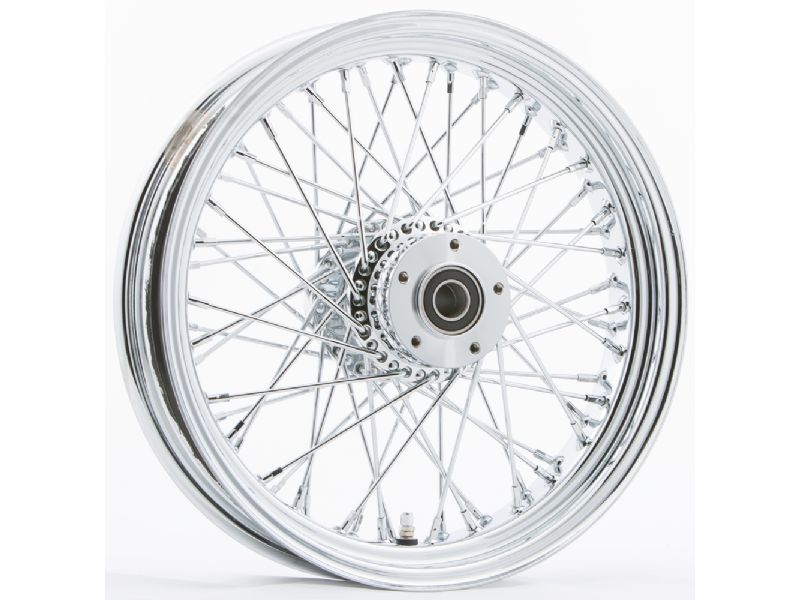

HardDrive Chrome wheels come in three unique patterns with chrome spokes and nipples to maximize the look of your custom ride
Chrome wheels available for many stock and custom applications in 40 and 60 Spoke and the 48 Big Spoke
Sealed for tubeless tires
The Steel Chrome Rim is laced in three styles to the Chrome Billet Aluminum hub, in either the traditional 40-Spoke pattern, a custom 60 spoke pattern or the custom 48-Big Spoke with beefy 9mm spokes
Wheels are made for custom fitment and may require modified axle spacing and/or rotor/pulley spacing
Application listed for axle size and location diameter only, additional spacing of rotors and pulleys may be required for exact fitment on some applications
It is recommended to measure you current wheel hubs to help you select the best option for your ride
Wheels come complete with spoke sealant, Chrome valve stem, inner sleeve and sealed wheel bearings, except the `84-99 fitments which comes with ¾” Timken bearings with outer seal installed (greasing is required).
Narrow Glide hubs will not accommodate the use of Speedo Drive
Spoke wheels are sealed for tubeless application, however; spoke wheels do require service interval maintenance which may disturb the sealant
Sealant is not covered under warranty as a manufacturing defect
All wheels use hub mounted brake rotors with OEM 5 bolt pattern
All Bearings and Bearing Spacers on this page are for replacement on HardDrive Spokes wheels only
Please refer to the Hub Reference Chart for wheel to motorcycle selection
FRONT WHEELS
REAR WHEELS
REPLACEMENT PARTS
Dimensions W 19.3in * H 8.7in * L 19.7in Weight: 20.5lbs
