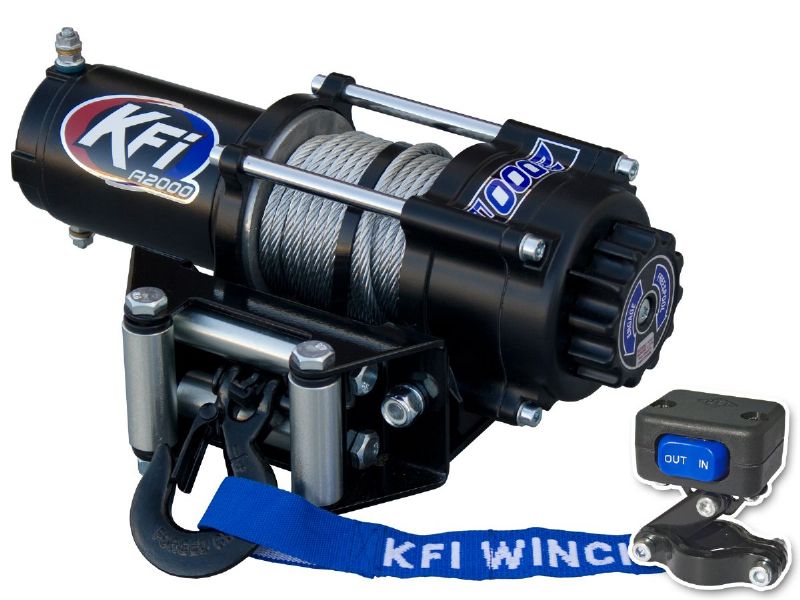

This 2500lb ATV Series winch features Water Resistant seals to keep the elements out, a standard 4-hole mounting design and a heavy duty all metal turn clutch.
- Rated Line Pull: 2000 lbs.
- Motor: 12V DC, 1.1 hp Permanent Magnet
- Gear Ratio: 171:1
- Gear/Transmission: All-metal Planetary Gear Drive
- Brake: Dynamic and Mechanical
- Clutch (free spooling): All Metal Cam Activated Freespool
- Drum Size: 1.5" (D) x 3.15" (L)
- Cable: 5/32" (D) x 49' (L)
- Fairlead: Multi-directional Roller
- Control: Deluxe Handlebar-Mounted Mini-Rocker Control Switch
- Winch Dimensions: 12.28" L x 4.2" D x 4.4" H
- Mount Plate: Fairlead Mount Only (A Model Specific Mount is necessary for your make and model ATV)
- Mounting Bolt Pattern: 3.00" x 4.875" (4-Hole)
- Recommended Battery : 12 Amp/hour minimum
- Warranty: Limited 1 Year
- Winch Weight: 24.8 lbs. (complete kit)
Dimensions
W 13in * H 8in * L 8in
Weight: 22.8lbs
